Wayon VD（平面）MOS選型表

產品參數

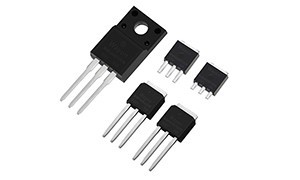

Wayon 平面MOSFET

聯系人：曾先生 153-3800-0102

產品詳情

標準系列
Part No.	Description	Package	BV_DSS（V）	R_DS(on) (Ω) @V GS=10V(max.)	ID (A) @TA=25℃	V_GS (V)	VGS(th) (V) (Typ.)	MPQ(pcs)
WMK9N20D	N-Channel VDMOS D1	TO-220	200	0.38	9	30	2.9	50
WML9N20D	N-Channel VDMOS D1	TO-220F	200	0.38	9	30	2.9	50
WMAH9N20D	N-Channel VDMOS D1	TO-251-4.0	200	0.38	9	30	2.9	80
WMD9N20D	N-Channel VDMOS D1	TO-252	200	0.38	9	30	2.9	2500
WMK18N20D	N-Channel VDMOS D1	TO-220	200	0.2	18	30	2.9	50
WML18N20D	N-Channel VDMOS D1	TO-220F	200	0.2	18	30	2.9	50
WMD18N20D	N-Channel VDMOS D1	TO-252	200	0.2	18	30	2.9	2500
WMK30N20D	N-Channel VDMOS D1	TO-220	200	0.11	30	30	3	50
WMO3N25D1	N-Channel VDMOS D1	TO-252	250	2.1	3	30	1.5	2500
WMM45N25D1	N-Channel VDMOS D1	TO-263	250	0.085	45	30	3.0	800
WMK45N25D1	N-Channel VDMOS D1	TO-220	250	0.085	45	30	3.0	50
WMJ69N30D1	N-Channel VDMOS D1	TO-247	300	0.05	69	30	3.0	30
WMPM69N30D1	N-Channel VDMOS D1	TO-3P	300	0.05	69	30	3.0	30
WMC1N40D1	N-Channel VDMOS D1	SOT-23	400	11	1	30	1.6	3000
WMK10N40D	N-Channel VDMOS D1	TO-220	400	0.53	10	30	3.5	50
WML10N40D	N-Channel VDMOS D1	TO-220F	400	0.53	10	30	3.5	50
WMD11N45D	N-Channel VDMOS D1	TO-252	450	0.53	11	30	3.0	2500
WML11N45D	N-Channel VDMOS D1	TO-220F	450	0.53	11	30	3.0	50
WMD1N50D	N-Channel VDMOS D1	TO-252	500	12	1	30	3.2	2500
WMAH1N50D	N-Channel VDMOS D1	TO-251-4.0	500	12	1	30	3.2	80
WML2N50D	N-Channel VDMOS D1	TO-220F	500	7	2	30	3.0	50
WMD2N50D	N-Channel VDMOS D1	TO-252	500	7	2	30	3.0	2500
WMO3N50D1	N-Channel VDMOS D1	TO-252	500	3.5	3	30	3.5	2500
WMK4N50D	N-Channel VDMOS D1	TO-220	500	2.50	4	30	2.9	50
WML4N50D	N-Channel VDMOS D1	TO-220F	500	2.50	4	30	2.9	50
WMAH4N50D	N-Channel VDMOS D1	TO-251-4.0	500	2.50	4	30	2.9	80
WMD4N50D	N-Channel VDMOS D1	TO-252	500	2.50	4	30	2.9	2500
WMO5N50D1	N-Channel VDMOS D1	TO-252	500	1.6	5	30	3.3	2500
WMO5N50D1B	N-Channel VDMOS D1	TO-252	500	1.55	5	30	3.0	2500
WML5N50D1B	N-Channel VDMOS D1	TO-220F	500	1.55	5	30	3.0	50
WMAH8N50D	N-Channel VDMOS D1	TO-251-4.0	500	0.9	8	30	3.2	80
WML8N50D	N-Channel VDMOS D1	TO-220F	500	0.9	8	30	3.2	50
WMD8N50D	N-Channel VDMOS D1	TO-252	500	0.9	8	30	3.2	2500
WMK9N50D1B	N-Channel VDMOS D1	TO-220	500	0.8	9	30	3.0	50
WML9N50D1B	N-Channel VDMOS D1	TO-220F	500	0.8	9	30	3.0	50
WMO9N50D1B	N-Channel VDMOS D1	TO-252	500	0.8	9	30	3.0	2500
WMK10N50D	N-Channel VDMOS D1	TO-220	500	0.73	10	30	3.0	50
WML10N50D	N-Channel VDMOS D1	TO-220F	500	0.73	10	30	3.0	50
WMK13N50D1	N-Channel VDMOS D1	TO-220	500	0.48	13	30	3.0	50
WML13N50D1	N-Channel VDMOS D1	TO-220F	500	0.48	13	30	3.0	50
WMJ18N50D1B	N-Channel VDMOS D1	TO-247	500	0.35	18	30	3.0	30
WML18N50D1B	N-Channel VDMOS D1	TO-220F	500	0.35	18	30	3.0	50
WMK20N50D1	N-Channel VDMOS D1	TO-220	500	0.29	20	30	3.0	50
WML20N50D1	N-Channel VDMOS D1	TO-220F	500	0.29	20	30	3.0	50
WMJ20N50D1	N-Channel VDMOS D1	TO-247	500	0.29	20	30	3.0	30
WMJ25N50D1B	N-Channel VDMOS D1	TO-247	500	0.27	25	30	3.0	30
WML25N50D1B	N-Channel VDMOS D1	TO-220F	500	0.27	25	30	3.0	50
WMJP32N50D	N-Channel VDMOS D1	TO-247Plus	500	0.11	32	30	3.0	30
WMJP32N50D1	N-Channel VDMOS D1	TO-247plus	500	0.11	32	30	3.0	30
WMJ40N50D	N-Channel VDMOS D1	TO-247	500	0.11	40	30	3.0	30
WMPN40N50D	N-Channel VDMOS D1	TO-3PN	500	0.11	40	30	3.0	30
WMK2N60D	N-Channel VDMOS D1	TO-220	600	4.5	2	30	3.0	50
WML2N60D	N-Channel VDMOS D1	TO-220F	600	4.5	2	30	3.0	50
WMAH2N60D	N-Channel VDMOS D1	TO-251-4.0	600	4.5	2	30	3.0	80
WMD2N60D	N-Channel VDMOS D1	TO-252	600	4.5	2	30	3.0	2500
WMK4N60D	N-Channel VDMOS D1	TO-220	600	2.4	4	30	3.2	50
WML4N60D	N-Channel VDMOS D1	TO-220F	600	2.4	4	30	3.2	50
WMAH4N60D	N-Channel VDMOS D1	TO-251-4.0	600	2.4	4	30	3.2	80
WML7N60D	N-Channel VDMOS D1	TO-220F	600	1.3	7	30	3.2	50
WMAH7N60D	N-Channel VDMOS D1	TO-251-4.0	600	1.3	7	30	3.2	80
WMD7N60D	N-Channel VDMOS D1	TO-252	600	1.3	7	30	3.2	2500
WMD8N60DC	N-Channel VDMOS D1	T0-252	600	1	8	30	3.0	2500
WML8N60DC	N-Channel VDMOS D1	TO-220F	600	1	8	30	3.0	50
WMK10N60D	N-Channel VDMOS D1	TO-220	600	0.85	10	30	3.2	50
WML10N60D	N-Channel VDMOS D1	TO-220F	600	0.85	10	30	3.2	50
WMK12N60D	N-Channel VDMOS D1	TO-220	600	0.73	12	30	3.0	50
WML12N60D	N-Channel VDMOS D1	TO-220F	600	0.73	12	30	3.0	50
WMK16N60D	N-Channel VDMOS D1	TO-220	600	0.48	16	30	3.0	50
WML16N60D	N-Channel VDMOS D1	TO-220F	600	0.48	16	30	3.0	50
WML20N60DC	N-Channel VDMOS D1	TO-220F	600	0.43	20	30	2.8	50
WMM20N60D	N-Channel VDMOS D1	TO-263	600	0.43	20	30	2.8	800
WMPM25N60D	N-Channel VDMOS D1	TO-3P	600	0.22	25	30	2.8	30
WMI30N60D1	N-Channel VDMOS D1	TO-3P	600	0.3	30	30	3.0	30
WMC08N65D	N-Channel VDMOS D1	TO-23	650	21	0.8	30	1.2	3000
WMAH08N65D	N-Channel VDMOS D1	TO-251-4	650	21	0.8	30	1.2	80
WMD08N65D	N-Channel VDMOS D1	TO-252	650	21	0.8	30	1.2	2500
WMT2N65D1	N-Channel VDMOS D1	SOT-223-3L	650	5	2	30	3	3000
WMH2N65D1	N-Channel VDMOS D1	TO-251-3.5	650	5	2	30	3	75
WMD2N65D1	N-Channel VDMOS D1	TO-252	650	5	2	30	3	2500
WMK4N65D1	N-Channel VDMOS D1	TO-220	650	2.75	4	30	3.3	50.0
WML4N65D1	N-Channel VDMOS D1	TO-220F	650	2.75	4	30	3.3	50.0
WMO4N65D1	N-Channel VDMOS D1	TO-252	650	2.75	4	30	3.3	2500
WMK4N65D1B	N-Channel VDMOS D1	TO-220	650	2.55	4	30	3.0	50
WML4N65D1B	N-Channel VDMOS D1	TO-220F	650	2.55	4	30	3.0	50
WMO4N65D1B	N-Channel VDMOS D1	TO-252	650	2.55	4	30	3.0	2500
WMT4N65D1B	N-Channel VDMOS D1	TO-223	650	2.55	4	30	3.0	3000
WMAA4N65D1B	N-Channel VDMOS D1	TO-251-9.4	650	2.55	4	30	3.0	75
WMAD4N65D1B	N-Channel VDMOS D1	TO-251-7.7	650	2.55	4	30	3.0	75
WMAH4N65D1B	N-Channel VDMOS D1	TO-251-4.0	650	2.55	4	30	3.0	75
WML5N65D	N-Channel VDMOS D1	TO-220F	650	2.3	5	30	3.3	50
WML7N65D1B	N-Channel VDMOS D1	TO-220F	650	1.3	7	30	3.0	50
WMK7N65D1B	N-Channel VDMOS D1	TO-220	650	1.3	7	30	3.0	50
WMO7N65D1B	N-Channel VDMOS D1	TO-252	650	1.3	7	30	3.0	2500
WMH7N65D1B	N-Channel VDMOS D1	TO-251短	650	1.3	7	30	3.0	75
WMAA7N65D1B	N-Channel VDMOS D1	TO-251-9.4	650	1.3	7	30	3.0	75
WML7N65D1	N-Channel VDMOS D1	TO-220FP	650	1.4	7	30	3.2	50
WMK7N65D1	N-Channel VDMOS D1	TO-220	650	1.4	7	30	3.2	50
WMO7N65D1	N-Channel VDMOS D1	TO-252	650	1.4	7	30	3.2	2500
WMH7N65D1	N-Channel VDMOS D1	TO-251短	650	1.4	7	30	3.2	75
WMAH7N65D1	N-Channel VDMOS D1	TO-251-4.0	650	1.4	7	30	3.2	80
WMO9N65D1	N-Channel VDMOS D1	TO-252	650	0.98	9	30	3.0	2500
WML10N65D1B	N-Channel VDMOS D1	TO-220F	650	0.95	10	30	3.0	50
WMK10N65D1B	N-Channel VDMOS D1	TO-220	650	0.95	10	30	3.0	50
WML12N65D1	N-Channel VDMOS D1	TO-220F	630	0.78	12	30	3.0	50
WML12N65D1B	N-Channel VDMOS D1	TO-220F	650	0.74	12	30	3.0	50
WMK12N65D1B	N-Channel VDMOS D1	TO-220	650	0.74	12	30	3.0	50
WMM12N65D1B	N-Channel VDMOS D1	TO-263	650	0.74	12	30	3.0	800
WML16N65D1B	N-Channel VDMOS D1	TO-220F	650	0.58	16	30	3.0	50
WMK16N65D1B	N-Channel VDMOS D1	TO-220	650	0.58	16	30	3.0	50
WML20N65D1B	N-Channel VDMOS D1	TO-220F	650	0.44	20	30	3.0	50
WMK20N65D1B	N-Channel VDMOS D1	TO-220	650	0.44	20	30	3.0	50
WMJ20N65D1B	N-Channel VDMOS D1	TO-247	650	0.44	20	30	3.0	30
WMM20N65D1B	N-Channel VDMOS D1	TO-263	650	0.44	20	30	3.0	800
WMPM25N65D	N-Channel VDMOS D1	TO-3P	650	0.38	25	30	2.7	30
WMD4N70D	N-Channel VDMOS D1	TO-252	700	3.15	4	30	3.5	2500
WMAH4N70D	N-Channel VDMOS D1	TO-251-L4.0	700	3.15	4	30	3.5	80
WML4N70D	N-Channel VDMOS D1	TO-220F	700	3.15	4	30	3.5	50
WMB4N70D	N-Channel VDMOS D1	PDFN5*6	700	3.15	4	30	3.5	？
WML6N70D1	N-Channel VDMOS D1	TO-220F	700	1.62	6	30	3.0	50
WMAA6N70D1	N-Channel VDMOS D1	TO-251-9.4	700	1.62	6	30	3.0	75
WMO6N70D1	N-Channel VDMOS D1	TO-252	700	1.62	6	30	3.0	2500
WMM6N70D1	N-Channel VDMOS D1	TO-263	700	1.62	6	30	3.0	800
WMK6N70D1	N-Channel VDMOS D1	TO-220	700	1.62	6	30	3.0	50
WMD7N70D	N-Channel VDMOS D1	TO-252	700	1.55	7	30	3.5	2500
WML7N70D	N-Channel VDMOS D1	TO-220F	700	1.55	7	30	3.5	50
WML10N70D1	N-Channel VDMOS D1	TO-220FP	700	0.98	10	30	3.0	50
WML12N70D1	N-Channel VDMOS D1	TO-220F	700	0.8	12	30	3.0	50
WML16N70D1B	N-Channel VDMOS D1	TO-220F	700	0.54	16	30	3.0	50
WML20N70D1	N-Channel VDMOS D1	TO-220F	700	0.55	20	30	3.0	50
WMK20N70D1	N-Channel VDMOS D1	TO-220	700	0.55	20	30	3.0	50
WMT1N80D1	N-Channel VDMOS D1	TO223-3L	800	11.5	1	30	4.0	3000
WMO1N80D1	N-Channel VDMOS D1	TO252	800	11.5	1	30	4.0	2500
WMAH2N80D	N-Channel VDMOS D1	TO251-4.0	800	4.5	2	30	4.0	80
WMH4N80D1B	N-Channel VDMOS D1	TO-251短	800	4	4	30	3.2	75
WMO4N80D1B	N-Channel VDMOS D1	TO-252	800	4	4	30	3.2	2500
WMK4N80D1B	N-Channel VDMOS D1	TO-220	800	4	4	30	3.2	50
WMAD4N80D1B	N-Channel VDMOS D1	TO-251-7.7	800	4	4	30	3.2	75
WMO6N80D1B	N-Channel VDMOS D1	TO-252	800	2.2	6	30	3.5	2500
WML6N80D1B	N-Channel VDMOS D1	TO-220FP	800	2.2	6	30	3.5	50
WMO6N80D1	N-Channel VDMOS D1	TO-252	800	2.7	6	30	3.0	2500
WML6N80D1	N-Channel VDMOS D1	TO-220FP	800	2.7	6	30	3.0	50
WMAA6N80D1B	N-Channel VDMOS D1	TO-251-9.4	800	2.7	6	30	3.0	75
WMAD6N80D1B	N-Channel VDMOS D1	TO-251-7.7	800	2.7	6	30	3.0	75
WML7N80D1	N-Channel VDMOS D1	TO-220FP	800	1.6	7	30	3.0	50
WML10N80D1B	N-Channel VDMOS D1	TO-220FP	800	0.9	10	30	3.1	50
WML10N80D1	N-Channel VDMOS D1	TO-220FP	800	1.15	10	30	4.0	50
WMJ10N80D1	N-Channel VDMOS D1	TO-247	800	1.15	10	30	4.0	30
WMJ14N80D1	N-Channel VDMOS D1	TO-247	800	0.72	14	30	3.0	30
WMJ27N80D1	N-Channel VDMOS D1	TO-247	800	0.85	27	30	3.5	30
WML3N90D	N-Channel VDMOS D1	TO-220F	900	5.2	3	30	3.1	50
WML4N90D1	N-Channel VDMOS D1	TO-220F	900	3.5	4	30	3.5	50
WMK4N90D1	N-Channel VDMOS D1	TO-220	900	3.5	4	30	3.5	50
WMM4N90D1	N-Channel VDMOS D1	TO-263	900	3.5	4	30	3.5	800
WML4N90D1B	N-Channel VDMOS D1	TO-220F	900	3.2	4	30	3.7	50
WMK4N90D1B	N-Channel VDMOS D1	TO-220	900	3.2	4	30	3.7	50
WMM4N90D1B	N-Channel VDMOS D1	TO-263	900	3.2	4	30	3.7	800
WMO4N90D1C	N-Channel VDMOS D1	TO-252	900	4.8	4	30	3.0	2500
WMK6N90D1	N-Channel VDMOS D1	TO-220	900	1.9	6	30	3.5	50
WML6N90D1	N-Channel VDMOS D1	TO-220F	900	1.9	6	30	3.0	50
WMM6N90D1	N-Channel VDMOS D1	TO-263	900	1.9	6	30	3.0	800
WMK6N90D1B	N-Channel VDMOS D1	TO-220	900	2.3	6	30	3.0	50
WML6N90D1B	N-Channel VDMOS D1	TO-220F	900	2.3	6	30	3.0	50
WMM6N90D1B	N-Channel VDMOS D1	TO-263	900	2.3	6	30	3.0	800
WML9N90D1B	N-Channel VDMOS D1	TO-220F	900	1.2	9	30	3.1	50
WMJ9N90D1B	N-Channel VDMOS D1	TO-247	900	1.2	9	30	3.1	30
WMK9N90D1B	N-Channel VDMOS D1	TO-220	900	1.2	9	30	3.1	50
WMJ13N90D1	N-Channel VDMOS D1	TO-247	900	0.7	13	30	4.0	30
WMJ18N90D1	N-Channel VDMOS D1	TO-247	900	0.8	18	30	3.5	30
WMAA2N100D1	N-Channel VDMOS D1	TO-251長	1000	10	2	30	3.5	75
WMO2N100D1	N-Channel VDMOS D1	TO-252	1000	10	2	30	3.5	2500
WML2N100D1	N-Channel VDMOS D1	TO-220F	1000	10	2	30	3.5	50
WML4N100D1	N-Channel VDMOS D1	TO-220F	1000	2.5	4	30	3.5	50
WML6N100D1	N-Channel VDMOS D1	TO-220F	1000	2.3	6	30	3.5	50
WMM6N100D1	N-Channel VDMOS D1	TO-263-2	1000	2.3	6	30	3.5	800
WMJ10N100D1	N-Channel VDMOS D1	TO-247	1000	1.25	10	30	3.5	30
WML10N100D1B	N-Channel VDMOS D1	TO-220FP	1000	1.5	10	30	3.5	50
WMJ3N120D1	N-Channel VDMOS D1	TO-247	1200	9	3	30	3.5	30
WMO3N120D1	N-Channel VDMOS D1	TO-252	1200	9	3	30	3.5	2500
WMJ6N120D1	N-Channel VDMOS D1	TO-247	1200	2.6	6	30	4.0	30
WMJ12N120D1	N-Channel VDMOS D1	TO-247	1200	1.4	12	30	3.5	30
WMX12N120D1	N-Channel VDMOS D1	TO-3PF	1200	1.4	12	30	3.5	30
WMK3N150D1	N-Channel VDMOS D1	TO-220	1500	8.2	3	30	3.5	50
WMX3N150D1	N-Channel VDMOS D1	TO-3PF	1500	8.2	3	30	3.5	30
WMJ3N150D1	N-Channel VDMOS D1	TO-247	1500	8.2	3	30	3.5	30
WML3N150D1	N-Channel VDMOS D1	TO-220F	1500	8.2	3	30	3.5	50
WMM3N150D1	N-Channel VDMOS D1	TO263-2	1500	8.2	3	30	3.5	800
WMEA4N150DB	N-Channel VDMOS D1	TO-3PF	1500	4.5	4	30	3.9	30
WMJ9N150D1	N-Channel VDMOS D1	TO-247	1500	4.2	9	30	3.5	30
WMJ11N150D1	N-Channel VDMOS D1	TO-247	1500	3.2	11	30	3.5	30

快恢復系列
Part No.	Description	Package	BV_DSS（V）	R_DS(on) (Ω) @V GS=10V(max.)	ID (A) @TA=25℃	V_GS (V)	VGS(th) (V) (Typ.)	最小包裝
WMD3N50RCL	N-Channel VDMOS R Series	TO-252	500	2.60	3	30	3.0	2500
WMD3N50RC	N-Channel VDMOS R Series	TO-252	500	3.50	3	30	3.0	2500
WMD4N50RC	N-Channel VDMOS R Series	TO-252	500	2.20	4	30	3.0	2500
WMD5N50RCH	N-Channel VDMOS R Series	TO-252	500	4.00	5	30	3.0	2500
WMD5N50RC	N-Channel VDMOS R Series	TO-252	500	1.70	5	30	3.0	2500
WMD5N50RB	N-Channel VDMOS R Series	TO-252	500	1.55	5	30	3.0	2500
WML5N50RC	N-Channel VDMOS R Series	TO-220F	500	1.70	5	30	3.0	50
WML7N50RC	N-Channel VDMOS R Series	TO-220F	500	1.60	7	30	4.0	50
WMD7N50RC	N-Channel VDMOS R Series	TO-252	500	1.60	7	30	4.0	2500
WMD5N60RC	N-Channel VDMOS R Series	TO-252	600	2.00	5	30	3.0	2500
WMD5N60RCT	N-Channel VDMOS R Series	TO-252	600	2.00	5	30	4.0	2500
WML5N60RCT	N-Channel VDMOS R Series	TO-220F	600	2.00	5	30	4.0	50
WMD7N60RC	N-Channel VDMOS R Series	TO-252	600	1.5	7	30	3.0	2500
WML7N60RC	N-Channel VDMOS R Series	TO-220F	600	1.5	7	30	3.0	50
WMD5N60RC	N-Channel VDMOS R Series	TO-252	600	2.00	5	30	4.0	2500

分享到：

上一篇：沒有了

下一篇：上海維安半導體超結MOS選型表

推薦新聞

碳化硅二極管的介紹 2023-04-23

標準系列
Part No.	Description	Package	BV_DSS（V）	R_DS(on) (Ω) @V GS=10V(max.)	ID (A) @TA=25℃	V_GS (V)	VGS(th) (V) (Typ.)	MPQ(pcs)
WMK9N20D	N-Channel VDMOS D1	TO-220	200	0.38	9	30	2.9	50
WML9N20D	N-Channel VDMOS D1	TO-220F	200	0.38	9	30	2.9	50
WMAH9N20D	N-Channel VDMOS D1	TO-251-4.0	200	0.38	9	30	2.9	80
WMD9N20D	N-Channel VDMOS D1	TO-252	200	0.38	9	30	2.9	2500
WMK18N20D	N-Channel VDMOS D1	TO-220	200	0.2	18	30	2.9	50
WML18N20D	N-Channel VDMOS D1	TO-220F	200	0.2	18	30	2.9	50
WMD18N20D	N-Channel VDMOS D1	TO-252	200	0.2	18	30	2.9	2500
WMK30N20D	N-Channel VDMOS D1	TO-220	200	0.11	30	30	3	50
WMO3N25D1	N-Channel VDMOS D1	TO-252	250	2.1	3	30	1.5	2500
WMM45N25D1	N-Channel VDMOS D1	TO-263	250	0.085	45	30	3.0	800
WMK45N25D1	N-Channel VDMOS D1	TO-220	250	0.085	45	30	3.0	50
WMJ69N30D1	N-Channel VDMOS D1	TO-247	300	0.05	69	30	3.0	30
WMPM69N30D1	N-Channel VDMOS D1	TO-3P	300	0.05	69	30	3.0	30
WMC1N40D1	N-Channel VDMOS D1	SOT-23	400	11	1	30	1.6	3000
WMK10N40D	N-Channel VDMOS D1	TO-220	400	0.53	10	30	3.5	50
WML10N40D	N-Channel VDMOS D1	TO-220F	400	0.53	10	30	3.5	50
WMD11N45D	N-Channel VDMOS D1	TO-252	450	0.53	11	30	3.0	2500
WML11N45D	N-Channel VDMOS D1	TO-220F	450	0.53	11	30	3.0	50
WMD1N50D	N-Channel VDMOS D1	TO-252	500	12	1	30	3.2	2500
WMAH1N50D	N-Channel VDMOS D1	TO-251-4.0	500	12	1	30	3.2	80
WML2N50D	N-Channel VDMOS D1	TO-220F	500	7	2	30	3.0	50
WMD2N50D	N-Channel VDMOS D1	TO-252	500	7	2	30	3.0	2500
WMO3N50D1	N-Channel VDMOS D1	TO-252	500	3.5	3	30	3.5	2500
WMK4N50D	N-Channel VDMOS D1	TO-220	500	2.50	4	30	2.9	50
WML4N50D	N-Channel VDMOS D1	TO-220F	500	2.50	4	30	2.9	50
WMAH4N50D	N-Channel VDMOS D1	TO-251-4.0	500	2.50	4	30	2.9	80
WMD4N50D	N-Channel VDMOS D1	TO-252	500	2.50	4	30	2.9	2500
WMO5N50D1	N-Channel VDMOS D1	TO-252	500	1.6	5	30	3.3	2500
WMO5N50D1B	N-Channel VDMOS D1	TO-252	500	1.55	5	30	3.0	2500
WML5N50D1B	N-Channel VDMOS D1	TO-220F	500	1.55	5	30	3.0	50
WMAH8N50D	N-Channel VDMOS D1	TO-251-4.0	500	0.9	8	30	3.2	80
WML8N50D	N-Channel VDMOS D1	TO-220F	500	0.9	8	30	3.2	50
WMD8N50D	N-Channel VDMOS D1	TO-252	500	0.9	8	30	3.2	2500
WMK9N50D1B	N-Channel VDMOS D1	TO-220	500	0.8	9	30	3.0	50
WML9N50D1B	N-Channel VDMOS D1	TO-220F	500	0.8	9	30	3.0	50
WMO9N50D1B	N-Channel VDMOS D1	TO-252	500	0.8	9	30	3.0	2500
WMK10N50D	N-Channel VDMOS D1	TO-220	500	0.73	10	30	3.0	50
WML10N50D	N-Channel VDMOS D1	TO-220F	500	0.73	10	30	3.0	50
WMK13N50D1	N-Channel VDMOS D1	TO-220	500	0.48	13	30	3.0	50
WML13N50D1	N-Channel VDMOS D1	TO-220F	500	0.48	13	30	3.0	50
WMJ18N50D1B	N-Channel VDMOS D1	TO-247	500	0.35	18	30	3.0	30
WML18N50D1B	N-Channel VDMOS D1	TO-220F	500	0.35	18	30	3.0	50
WMK20N50D1	N-Channel VDMOS D1	TO-220	500	0.29	20	30	3.0	50
WML20N50D1	N-Channel VDMOS D1	TO-220F	500	0.29	20	30	3.0	50
WMJ20N50D1	N-Channel VDMOS D1	TO-247	500	0.29	20	30	3.0	30
WMJ25N50D1B	N-Channel VDMOS D1	TO-247	500	0.27	25	30	3.0	30
WML25N50D1B	N-Channel VDMOS D1	TO-220F	500	0.27	25	30	3.0	50
WMJP32N50D	N-Channel VDMOS D1	TO-247Plus	500	0.11	32	30	3.0	30
WMJP32N50D1	N-Channel VDMOS D1	TO-247plus	500	0.11	32	30	3.0	30
WMJ40N50D	N-Channel VDMOS D1	TO-247	500	0.11	40	30	3.0	30
WMPN40N50D	N-Channel VDMOS D1	TO-3PN	500	0.11	40	30	3.0	30
WMK2N60D	N-Channel VDMOS D1	TO-220	600	4.5	2	30	3.0	50
WML2N60D	N-Channel VDMOS D1	TO-220F	600	4.5	2	30	3.0	50
WMAH2N60D	N-Channel VDMOS D1	TO-251-4.0	600	4.5	2	30	3.0	80
WMD2N60D	N-Channel VDMOS D1	TO-252	600	4.5	2	30	3.0	2500
WMK4N60D	N-Channel VDMOS D1	TO-220	600	2.4	4	30	3.2	50
WML4N60D	N-Channel VDMOS D1	TO-220F	600	2.4	4	30	3.2	50
WMAH4N60D	N-Channel VDMOS D1	TO-251-4.0	600	2.4	4	30	3.2	80
WML7N60D	N-Channel VDMOS D1	TO-220F	600	1.3	7	30	3.2	50
WMAH7N60D	N-Channel VDMOS D1	TO-251-4.0	600	1.3	7	30	3.2	80
WMD7N60D	N-Channel VDMOS D1	TO-252	600	1.3	7	30	3.2	2500
WMD8N60DC	N-Channel VDMOS D1	T0-252	600	1	8	30	3.0	2500
WML8N60DC	N-Channel VDMOS D1	TO-220F	600	1	8	30	3.0	50
WMK10N60D	N-Channel VDMOS D1	TO-220	600	0.85	10	30	3.2	50
WML10N60D	N-Channel VDMOS D1	TO-220F	600	0.85	10	30	3.2	50
WMK12N60D	N-Channel VDMOS D1	TO-220	600	0.73	12	30	3.0	50
WML12N60D	N-Channel VDMOS D1	TO-220F	600	0.73	12	30	3.0	50
WMK16N60D	N-Channel VDMOS D1	TO-220	600	0.48	16	30	3.0	50
WML16N60D	N-Channel VDMOS D1	TO-220F	600	0.48	16	30	3.0	50
WML20N60DC	N-Channel VDMOS D1	TO-220F	600	0.43	20	30	2.8	50
WMM20N60D	N-Channel VDMOS D1	TO-263	600	0.43	20	30	2.8	800
WMPM25N60D	N-Channel VDMOS D1	TO-3P	600	0.22	25	30	2.8	30
WMI30N60D1	N-Channel VDMOS D1	TO-3P	600	0.3	30	30	3.0	30
WMC08N65D	N-Channel VDMOS D1	TO-23	650	21	0.8	30	1.2	3000
WMAH08N65D	N-Channel VDMOS D1	TO-251-4	650	21	0.8	30	1.2	80
WMD08N65D	N-Channel VDMOS D1	TO-252	650	21	0.8	30	1.2	2500
WMT2N65D1	N-Channel VDMOS D1	SOT-223-3L	650	5	2	30	3	3000
WMH2N65D1	N-Channel VDMOS D1	TO-251-3.5	650	5	2	30	3	75
WMD2N65D1	N-Channel VDMOS D1	TO-252	650	5	2	30	3	2500
WMK4N65D1	N-Channel VDMOS D1	TO-220	650	2.75	4	30	3.3	50.0
WML4N65D1	N-Channel VDMOS D1	TO-220F	650	2.75	4	30	3.3	50.0
WMO4N65D1	N-Channel VDMOS D1	TO-252	650	2.75	4	30	3.3	2500
WMK4N65D1B	N-Channel VDMOS D1	TO-220	650	2.55	4	30	3.0	50
WML4N65D1B	N-Channel VDMOS D1	TO-220F	650	2.55	4	30	3.0	50
WMO4N65D1B	N-Channel VDMOS D1	TO-252	650	2.55	4	30	3.0	2500
WMT4N65D1B	N-Channel VDMOS D1	TO-223	650	2.55	4	30	3.0	3000
WMAA4N65D1B	N-Channel VDMOS D1	TO-251-9.4	650	2.55	4	30	3.0	75
WMAD4N65D1B	N-Channel VDMOS D1	TO-251-7.7	650	2.55	4	30	3.0	75
WMAH4N65D1B	N-Channel VDMOS D1	TO-251-4.0	650	2.55	4	30	3.0	75
WML5N65D	N-Channel VDMOS D1	TO-220F	650	2.3	5	30	3.3	50
WML7N65D1B	N-Channel VDMOS D1	TO-220F	650	1.3	7	30	3.0	50
WMK7N65D1B	N-Channel VDMOS D1	TO-220	650	1.3	7	30	3.0	50
WMO7N65D1B	N-Channel VDMOS D1	TO-252	650	1.3	7	30	3.0	2500
WMH7N65D1B	N-Channel VDMOS D1	TO-251短	650	1.3	7	30	3.0	75
WMAA7N65D1B	N-Channel VDMOS D1	TO-251-9.4	650	1.3	7	30	3.0	75
WML7N65D1	N-Channel VDMOS D1	TO-220FP	650	1.4	7	30	3.2	50
WMK7N65D1	N-Channel VDMOS D1	TO-220	650	1.4	7	30	3.2	50
WMO7N65D1	N-Channel VDMOS D1	TO-252	650	1.4	7	30	3.2	2500
WMH7N65D1	N-Channel VDMOS D1	TO-251短	650	1.4	7	30	3.2	75
WMAH7N65D1	N-Channel VDMOS D1	TO-251-4.0	650	1.4	7	30	3.2	80
WMO9N65D1	N-Channel VDMOS D1	TO-252	650	0.98	9	30	3.0	2500
WML10N65D1B	N-Channel VDMOS D1	TO-220F	650	0.95	10	30	3.0	50
WMK10N65D1B	N-Channel VDMOS D1	TO-220	650	0.95	10	30	3.0	50
WML12N65D1	N-Channel VDMOS D1	TO-220F	630	0.78	12	30	3.0	50
WML12N65D1B	N-Channel VDMOS D1	TO-220F	650	0.74	12	30	3.0	50
WMK12N65D1B	N-Channel VDMOS D1	TO-220	650	0.74	12	30	3.0	50
WMM12N65D1B	N-Channel VDMOS D1	TO-263	650	0.74	12	30	3.0	800
WML16N65D1B	N-Channel VDMOS D1	TO-220F	650	0.58	16	30	3.0	50
WMK16N65D1B	N-Channel VDMOS D1	TO-220	650	0.58	16	30	3.0	50
WML20N65D1B	N-Channel VDMOS D1	TO-220F	650	0.44	20	30	3.0	50
WMK20N65D1B	N-Channel VDMOS D1	TO-220	650	0.44	20	30	3.0	50
WMJ20N65D1B	N-Channel VDMOS D1	TO-247	650	0.44	20	30	3.0	30
WMM20N65D1B	N-Channel VDMOS D1	TO-263	650	0.44	20	30	3.0	800
WMPM25N65D	N-Channel VDMOS D1	TO-3P	650	0.38	25	30	2.7	30
WMD4N70D	N-Channel VDMOS D1	TO-252	700	3.15	4	30	3.5	2500
WMAH4N70D	N-Channel VDMOS D1	TO-251-L4.0	700	3.15	4	30	3.5	80
WML4N70D	N-Channel VDMOS D1	TO-220F	700	3.15	4	30	3.5	50
WMB4N70D	N-Channel VDMOS D1	PDFN5*6	700	3.15	4	30	3.5	？
WML6N70D1	N-Channel VDMOS D1	TO-220F	700	1.62	6	30	3.0	50
WMAA6N70D1	N-Channel VDMOS D1	TO-251-9.4	700	1.62	6	30	3.0	75
WMO6N70D1	N-Channel VDMOS D1	TO-252	700	1.62	6	30	3.0	2500
WMM6N70D1	N-Channel VDMOS D1	TO-263	700	1.62	6	30	3.0	800
WMK6N70D1	N-Channel VDMOS D1	TO-220	700	1.62	6	30	3.0	50
WMD7N70D	N-Channel VDMOS D1	TO-252	700	1.55	7	30	3.5	2500
WML7N70D	N-Channel VDMOS D1	TO-220F	700	1.55	7	30	3.5	50
WML10N70D1	N-Channel VDMOS D1	TO-220FP	700	0.98	10	30	3.0	50
WML12N70D1	N-Channel VDMOS D1	TO-220F	700	0.8	12	30	3.0	50
WML16N70D1B	N-Channel VDMOS D1	TO-220F	700	0.54	16	30	3.0	50
WML20N70D1	N-Channel VDMOS D1	TO-220F	700	0.55	20	30	3.0	50
WMK20N70D1	N-Channel VDMOS D1	TO-220	700	0.55	20	30	3.0	50
WMT1N80D1	N-Channel VDMOS D1	TO223-3L	800	11.5	1	30	4.0	3000
WMO1N80D1	N-Channel VDMOS D1	TO252	800	11.5	1	30	4.0	2500
WMAH2N80D	N-Channel VDMOS D1	TO251-4.0	800	4.5	2	30	4.0	80
WMH4N80D1B	N-Channel VDMOS D1	TO-251短	800	4	4	30	3.2	75
WMO4N80D1B	N-Channel VDMOS D1	TO-252	800	4	4	30	3.2	2500
WMK4N80D1B	N-Channel VDMOS D1	TO-220	800	4	4	30	3.2	50
WMAD4N80D1B	N-Channel VDMOS D1	TO-251-7.7	800	4	4	30	3.2	75
WMO6N80D1B	N-Channel VDMOS D1	TO-252	800	2.2	6	30	3.5	2500
WML6N80D1B	N-Channel VDMOS D1	TO-220FP	800	2.2	6	30	3.5	50
WMO6N80D1	N-Channel VDMOS D1	TO-252	800	2.7	6	30	3.0	2500
WML6N80D1	N-Channel VDMOS D1	TO-220FP	800	2.7	6	30	3.0	50
WMAA6N80D1B	N-Channel VDMOS D1	TO-251-9.4	800	2.7	6	30	3.0	75
WMAD6N80D1B	N-Channel VDMOS D1	TO-251-7.7	800	2.7	6	30	3.0	75
WML7N80D1	N-Channel VDMOS D1	TO-220FP	800	1.6	7	30	3.0	50
WML10N80D1B	N-Channel VDMOS D1	TO-220FP	800	0.9	10	30	3.1	50
WML10N80D1	N-Channel VDMOS D1	TO-220FP	800	1.15	10	30	4.0	50
WMJ10N80D1	N-Channel VDMOS D1	TO-247	800	1.15	10	30	4.0	30
WMJ14N80D1	N-Channel VDMOS D1	TO-247	800	0.72	14	30	3.0	30
WMJ27N80D1	N-Channel VDMOS D1	TO-247	800	0.85	27	30	3.5	30
WML3N90D	N-Channel VDMOS D1	TO-220F	900	5.2	3	30	3.1	50
WML4N90D1	N-Channel VDMOS D1	TO-220F	900	3.5	4	30	3.5	50
WMK4N90D1	N-Channel VDMOS D1	TO-220	900	3.5	4	30	3.5	50
WMM4N90D1	N-Channel VDMOS D1	TO-263	900	3.5	4	30	3.5	800
WML4N90D1B	N-Channel VDMOS D1	TO-220F	900	3.2	4	30	3.7	50
WMK4N90D1B	N-Channel VDMOS D1	TO-220	900	3.2	4	30	3.7	50
WMM4N90D1B	N-Channel VDMOS D1	TO-263	900	3.2	4	30	3.7	800
WMO4N90D1C	N-Channel VDMOS D1	TO-252	900	4.8	4	30	3.0	2500
WMK6N90D1	N-Channel VDMOS D1	TO-220	900	1.9	6	30	3.5	50
WML6N90D1	N-Channel VDMOS D1	TO-220F	900	1.9	6	30	3.0	50
WMM6N90D1	N-Channel VDMOS D1	TO-263	900	1.9	6	30	3.0	800
WMK6N90D1B	N-Channel VDMOS D1	TO-220	900	2.3	6	30	3.0	50
WML6N90D1B	N-Channel VDMOS D1	TO-220F	900	2.3	6	30	3.0	50
WMM6N90D1B	N-Channel VDMOS D1	TO-263	900	2.3	6	30	3.0	800
WML9N90D1B	N-Channel VDMOS D1	TO-220F	900	1.2	9	30	3.1	50
WMJ9N90D1B	N-Channel VDMOS D1	TO-247	900	1.2	9	30	3.1	30
WMK9N90D1B	N-Channel VDMOS D1	TO-220	900	1.2	9	30	3.1	50
WMJ13N90D1	N-Channel VDMOS D1	TO-247	900	0.7	13	30	4.0	30
WMJ18N90D1	N-Channel VDMOS D1	TO-247	900	0.8	18	30	3.5	30
WMAA2N100D1	N-Channel VDMOS D1	TO-251長	1000	10	2	30	3.5	75
WMO2N100D1	N-Channel VDMOS D1	TO-252	1000	10	2	30	3.5	2500
WML2N100D1	N-Channel VDMOS D1	TO-220F	1000	10	2	30	3.5	50
WML4N100D1	N-Channel VDMOS D1	TO-220F	1000	2.5	4	30	3.5	50
WML6N100D1	N-Channel VDMOS D1	TO-220F	1000	2.3	6	30	3.5	50
WMM6N100D1	N-Channel VDMOS D1	TO-263-2	1000	2.3	6	30	3.5	800
WMJ10N100D1	N-Channel VDMOS D1	TO-247	1000	1.25	10	30	3.5	30
WML10N100D1B	N-Channel VDMOS D1	TO-220FP	1000	1.5	10	30	3.5	50
WMJ3N120D1	N-Channel VDMOS D1	TO-247	1200	9	3	30	3.5	30
WMO3N120D1	N-Channel VDMOS D1	TO-252	1200	9	3	30	3.5	2500
WMJ6N120D1	N-Channel VDMOS D1	TO-247	1200	2.6	6	30	4.0	30
WMJ12N120D1	N-Channel VDMOS D1	TO-247	1200	1.4	12	30	3.5	30
WMX12N120D1	N-Channel VDMOS D1	TO-3PF	1200	1.4	12	30	3.5	30
WMK3N150D1	N-Channel VDMOS D1	TO-220	1500	8.2	3	30	3.5	50
WMX3N150D1	N-Channel VDMOS D1	TO-3PF	1500	8.2	3	30	3.5	30
WMJ3N150D1	N-Channel VDMOS D1	TO-247	1500	8.2	3	30	3.5	30
WML3N150D1	N-Channel VDMOS D1	TO-220F	1500	8.2	3	30	3.5	50
WMM3N150D1	N-Channel VDMOS D1	TO263-2	1500	8.2	3	30	3.5	800
WMEA4N150DB	N-Channel VDMOS D1	TO-3PF	1500	4.5	4	30	3.9	30
WMJ9N150D1	N-Channel VDMOS D1	TO-247	1500	4.2	9	30	3.5	30
WMJ11N150D1	N-Channel VDMOS D1	TO-247	1500	3.2	11	30	3.5	30

快恢復系列
Part No.	Description	Package	BV_DSS（V）	R_DS(on) (Ω) @V GS=10V(max.)	ID (A) @TA=25℃	V_GS (V)	VGS(th) (V) (Typ.)	最小包裝
WMD3N50RCL	N-Channel VDMOS R Series	TO-252	500	2.60	3	30	3.0	2500
WMD3N50RC	N-Channel VDMOS R Series	TO-252	500	3.50	3	30	3.0	2500
WMD4N50RC	N-Channel VDMOS R Series	TO-252	500	2.20	4	30	3.0	2500
WMD5N50RCH	N-Channel VDMOS R Series	TO-252	500	4.00	5	30	3.0	2500
WMD5N50RC	N-Channel VDMOS R Series	TO-252	500	1.70	5	30	3.0	2500
WMD5N50RB	N-Channel VDMOS R Series	TO-252	500	1.55	5	30	3.0	2500
WML5N50RC	N-Channel VDMOS R Series	TO-220F	500	1.70	5	30	3.0	50
WML7N50RC	N-Channel VDMOS R Series	TO-220F	500	1.60	7	30	4.0	50
WMD7N50RC	N-Channel VDMOS R Series	TO-252	500	1.60	7	30	4.0	2500
WMD5N60RC	N-Channel VDMOS R Series	TO-252	600	2.00	5	30	3.0	2500
WMD5N60RCT	N-Channel VDMOS R Series	TO-252	600	2.00	5	30	4.0	2500
WML5N60RCT	N-Channel VDMOS R Series	TO-220F	600	2.00	5	30	4.0	50
WMD7N60RC	N-Channel VDMOS R Series	TO-252	600	1.5	7	30	3.0	2500
WML7N60RC	N-Channel VDMOS R Series	TO-220F	600	1.5	7	30	3.0	50
WMD5N60RC	N-Channel VDMOS R Series	TO-252	600	2.00	5	30	4.0	2500

分享到：

上一篇：沒有了

下一篇：上海維安半導體超結MOS選型表

跟此產品相關的產品

: 上海維安半導體超結MOS選型表

: WMJ36N65F2

: WMJ53N65F2

: WMJ90N65SR

首頁 ? 超結MOS? 維安 | Wayon

Wayon VD（平面）MOS選型表

產品詳情

推薦新聞

名稱：Wayon VD（平面）MOS選型表

產品詳情
