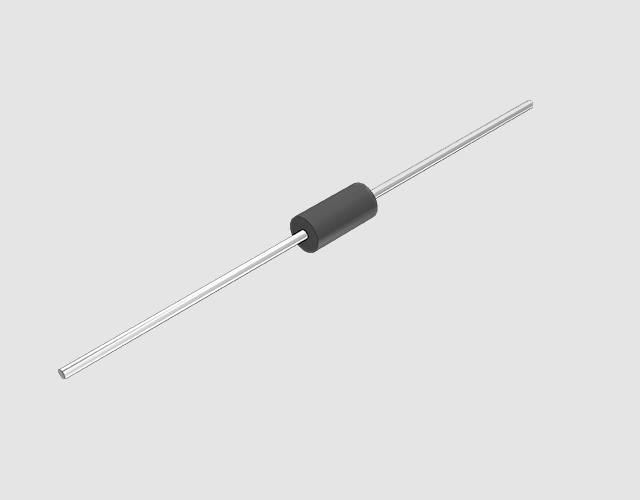

| DO-41/DO-15/DO-201AD /TO-251/TO-252 LowVF SCHOTTKY DIODES Low VF肖特基二極管 | |||||
| Type |
Maximum average
forward rectified
current |
Maximum
instantaneous
forwardvoltage |
Maximum
repetifive peak
reverse voltage |
Maximum
instantaneous
reverseat rated Vds | Outline |
| IF (A) | VF(Max) (V) | Vdc (Min) (V) | IR (Max) (uA) | ||
| 5A系列 | |||||
| SR540L | 5.00 | 0.55 | 40.00 | 100.00 | DO-201AD |
| SR560L | 5.00 | 0.70 | 60.00 | 100.00 | |
| SR5100L | 5.00 | 0.85 | 100.00 | 100.00 | |
對于浪涌電壓或浪涌電流比較大的應用電路，應加抑制和吸收電路。
| DO-41/DO-15/DO-201AD /TO-251/TO-252 LowVF SCHOTTKY DIODES Low VF肖特基二極管 | |||||
| Type |
Maximum average
forward rectified
current |
Maximum
instantaneous
forwardvoltage |
Maximum
repetifive peak
reverse voltage |
Maximum
instantaneous
reverseat rated Vds | Outline |
| IF (A) | VF(Max) (V) | Vdc (Min) (V) | IR (Max) (uA) | ||
| 5A系列 | |||||
| SR540L | 5.00 | 0.55 | 40.00 | 100.00 | DO-201AD |
| SR560L | 5.00 | 0.70 | 60.00 | 100.00 | |
| SR5100L | 5.00 | 0.85 | 100.00 | 100.00 | |
對于浪涌電壓或浪涌電流比較大的應用電路，應加抑制和吸收電路。
